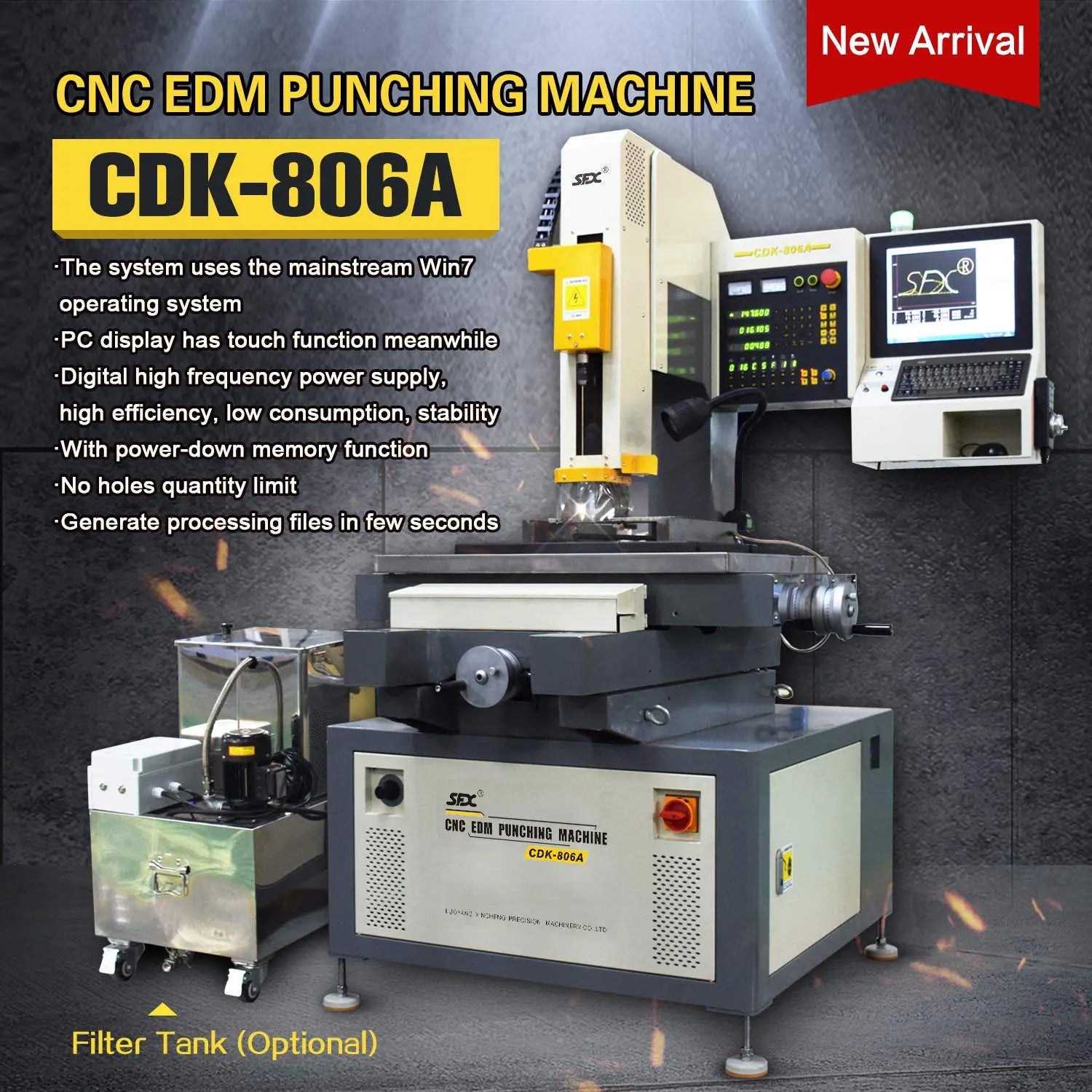

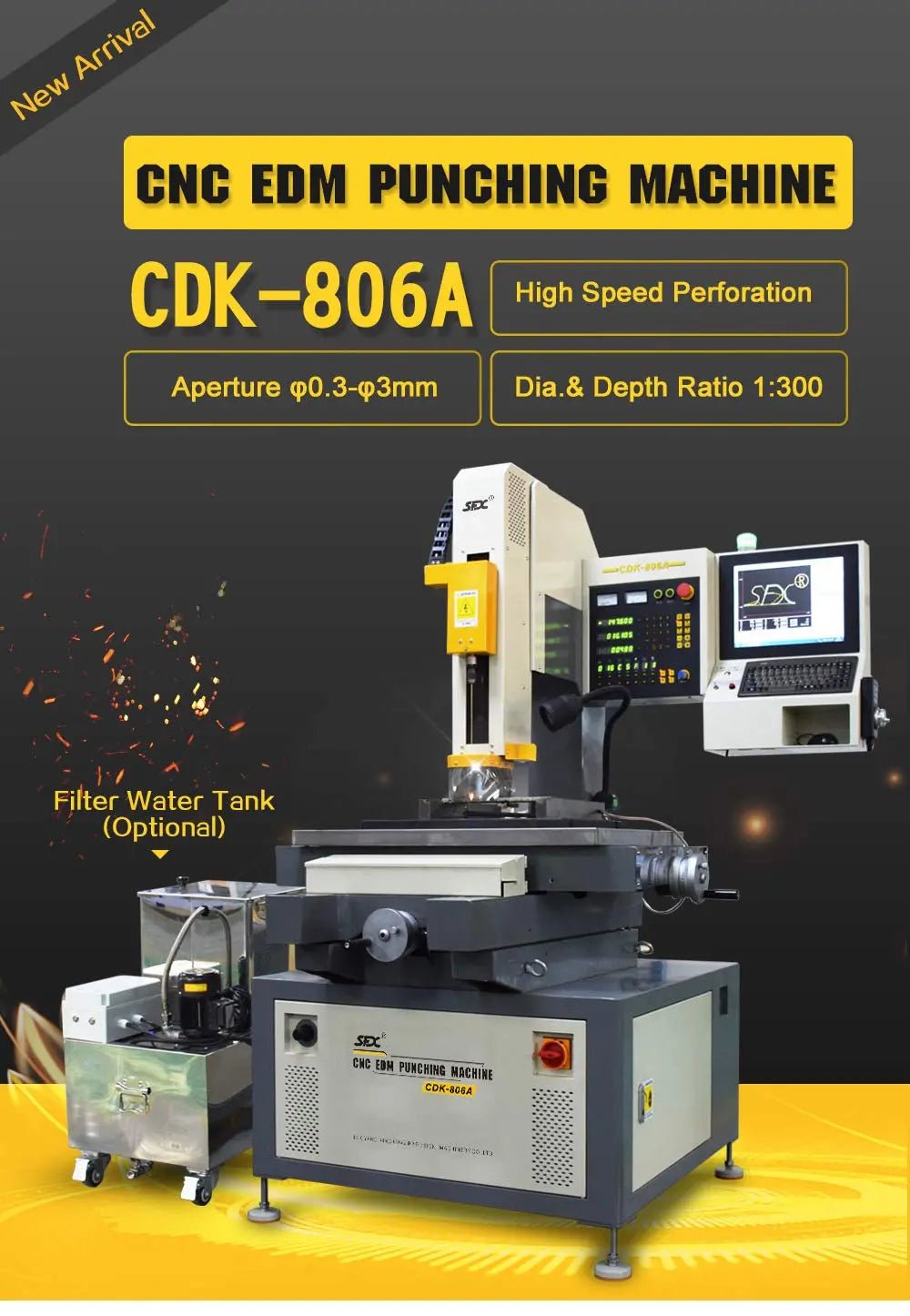

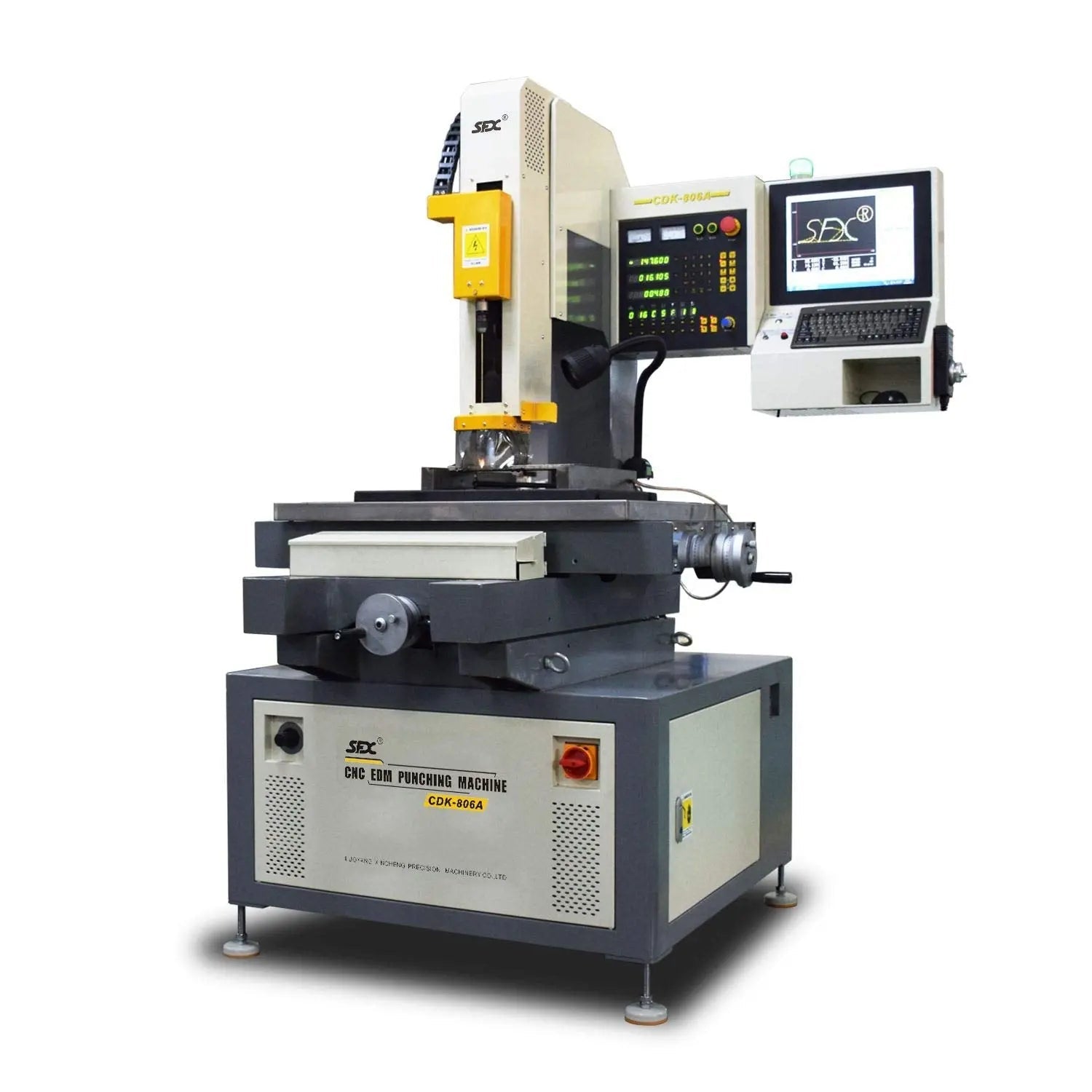

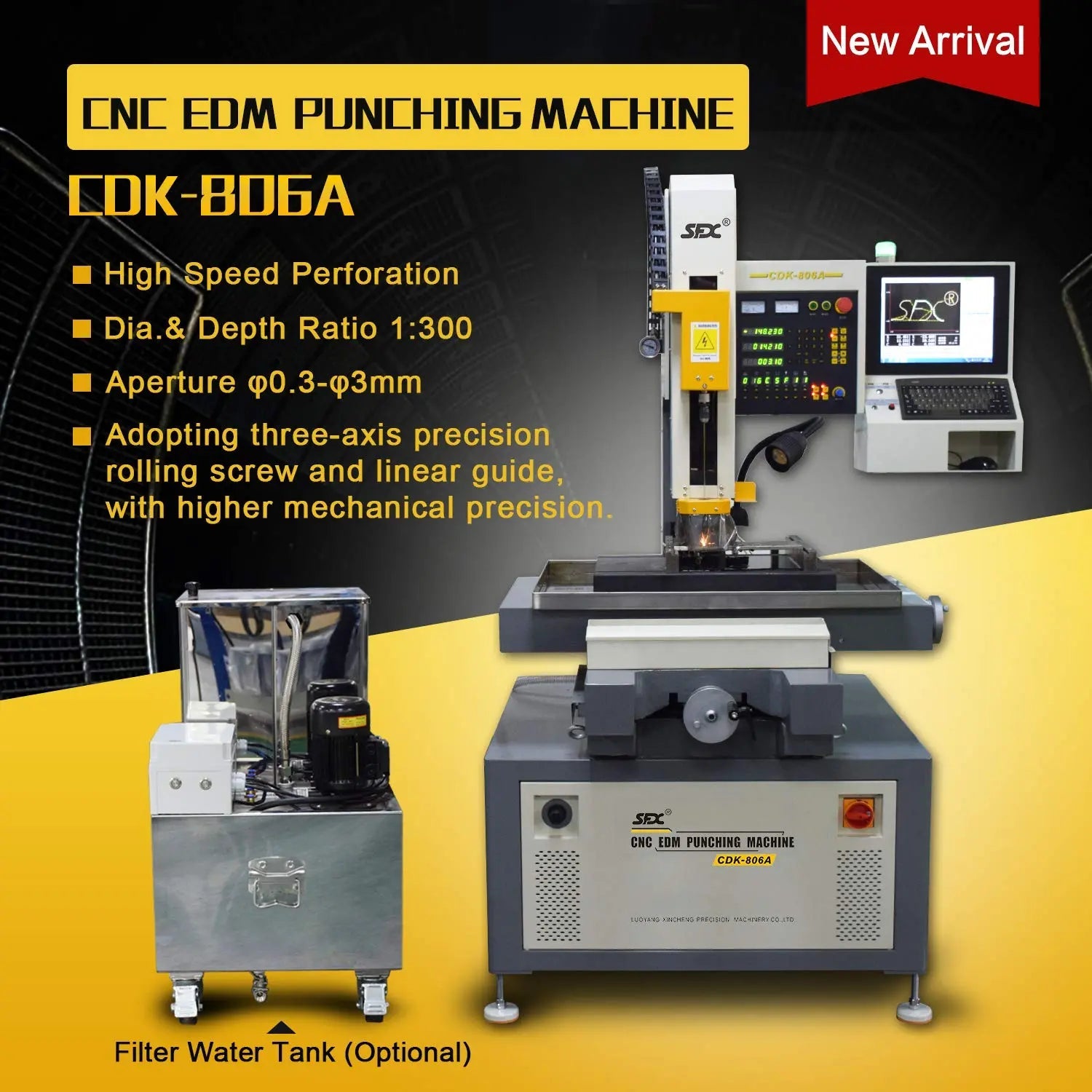

3 Axis CNC Deep Hole Drilling Machine, CNC Small Hole EDM Bench Drilling Machine, Three Axis CDK-806A 0.3mm-3mm

Enhancing Precision with the 3 Axis CNC Machine

Brand: SFX

Color: Multicolor

Features:

• [Easy Operation]Win7 Operating System;X,Y,Z 3-axis to Drill 0.3-3mm Burr-free Hole
• [High Speed]X,Y ≤0.03mm/300mm.Dia. & Depth Ratio 1:300
• [Accuracy]Adopting three-axis precisionrolling screw and linear guide,with higher mechanical precision.
• [PC Display]Touch Function. Digital High Frequency Power Supply,
• [High Efficiency]Low Consumption, Stability With Power-Down Memory Function.Erosion Speed: 30-60mm/min; Spindle Adjustment Speed: 1500mm/min; X,Y Moving Speed: 1000mm/min

model number: CDK 806A

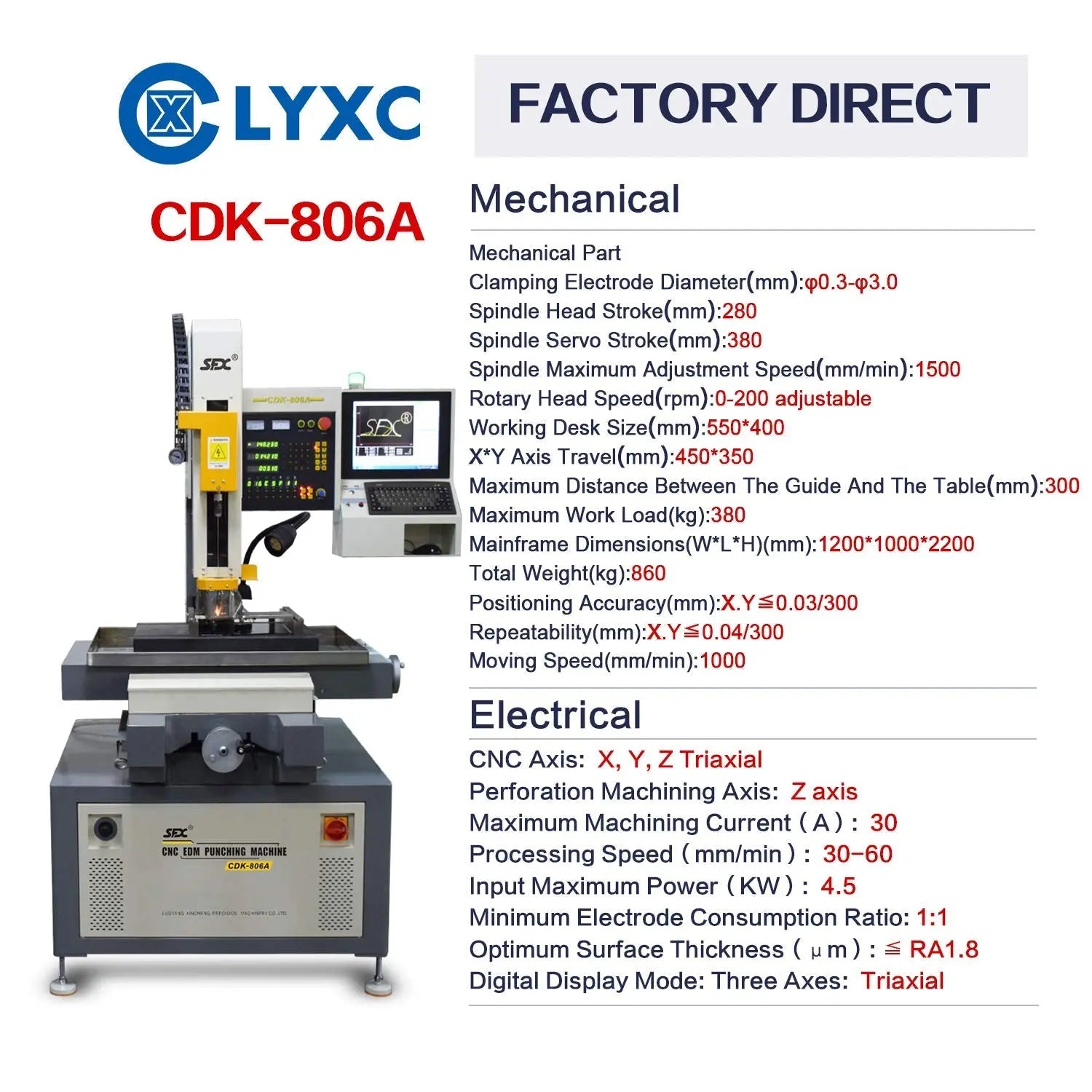

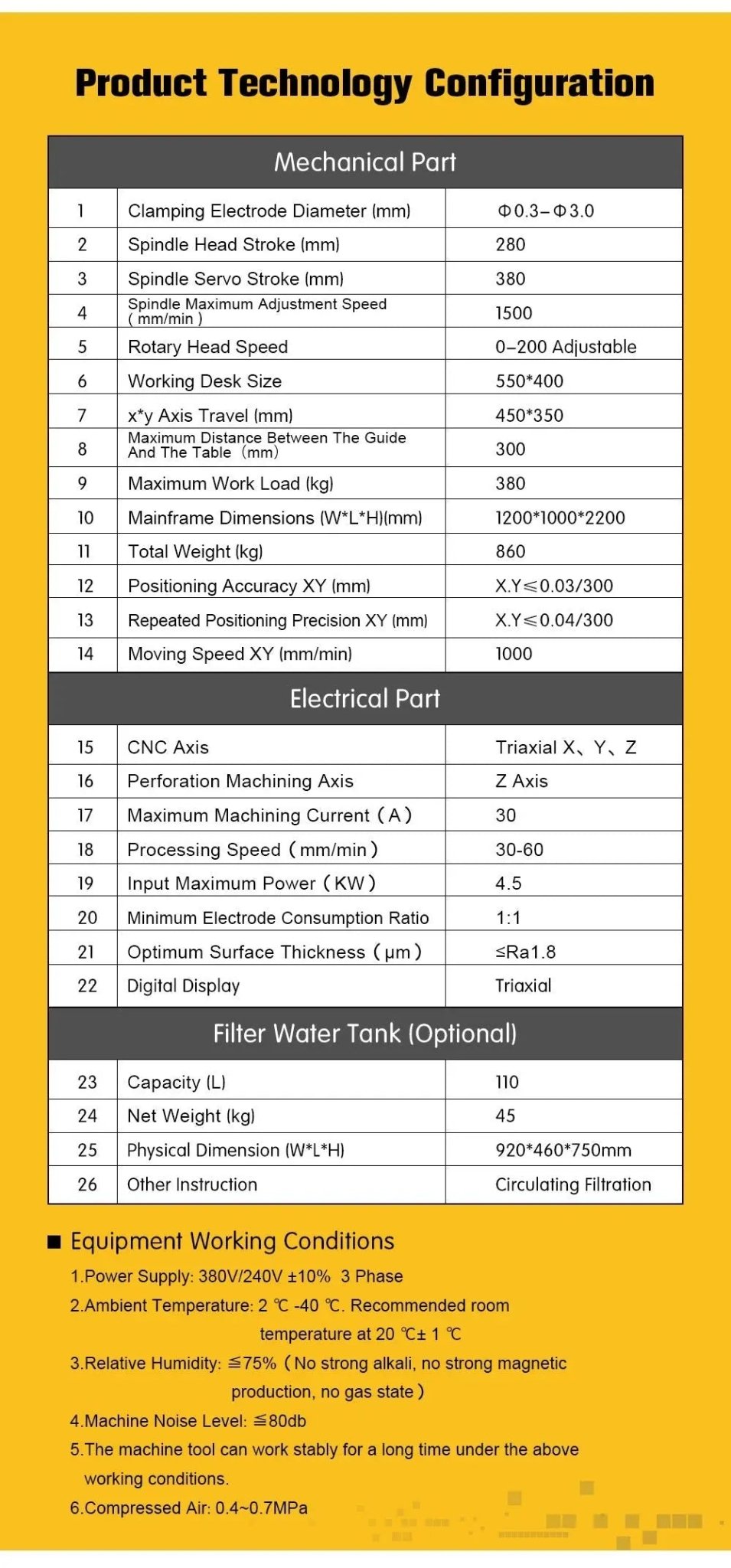

Details: Сlаmріng Еlесtrоdе Dіа.(mm):0.З-З.0 Spindle Head Stroke(mm):280 Spindle Servo Stroke(mm):380 Spindle Maximum Adjustment Speed(mm/min):1500 Rotary Head Speed(rpm):0-200 adjustable Working Desk Size(mm):550*400 X*Y Axis Travel(mm):450*350 Max. Distance Between The Guide And The Table(mm):300 Max. Work Load(kg):380 Total Weight(kg):860 Positioning Accuracy(mm):X.Y≤ 0.3/300 Repeatability(mm):X.Y ≤ 0.4/300 Moving Speed(mm/min):1000 CNC Axis:X,Y,Z 3-axis Perforation Machining Axis:Z Axis Max. Machining Current (A):30 Processing Speed (mm/min):30-60 Input Max. Power (KW):4.5 Optimum Surface Thickness: (um) ≤Ra1.8

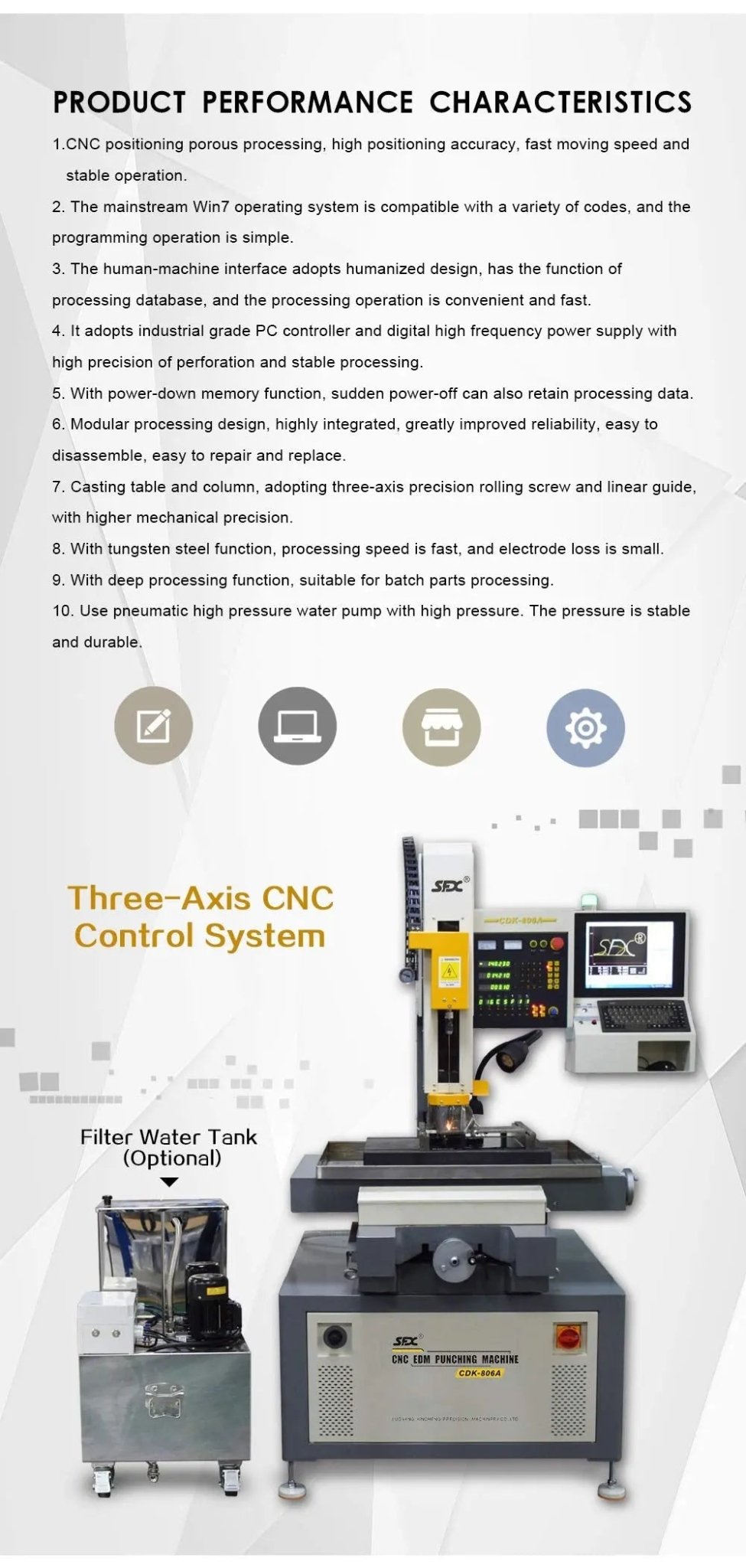

PRODUCT PERFORMANCE CHARACTERISTICS
CNC positioning porous processing, high positioning accuracy, fast moving speed and stable operation. The mainstream Win7 operating system is compatible with a variety of codes. The human-machine interface adopts humanized design, has the function of processing database. It adopts industrial grade PC controller and digital high frequency power supply with high precision of perforation and stable processing. X,Y,Z three-axis precision ball screw, linear guide. Z-axis has a depth setting function and simple operation, X,Y,Z three-axis digital display. The X and Y axes are automatically locked after positioning, and can be unlocked manually.
Working Conditions Power supply: 3-phase 380V/240V±10%, 50Hz/60Hz±10% Ambient temperature: 2℃-40℃；Recommended room temperature at 20℃±1℃ Relative humidity: ≦75% (no strong alkali, no strong magnetic field, no gas) Machine noise level: ≤80db

Disclaimer: Some items advertised by North State Signs & Printing are carried on Amazon.   Prices may be different on Amazon.  North State Signs & Printing is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites. When you make a purchase through our affiliate links, we may earn a commission at no extra cost to you.

Advanced Drilling Technology

The 3 Axis CNC Deep Hole Drilling Machine utilizes cutting-edge technology to achieve exceptional drilling precision for small holes ranging from 0.3mm to 3mm. With its three-axis movement, this machine can create intricate patterns on various materials. This capability makes it ideal for industries like electronics and medical devices, where precision is paramount.

Versatile Applications

This machine is not just about deep hole drilling; it is also a CNC small hole EDM bench drilling machine. Therefore, it offers versatility that allows users to switch between different operations seamlessly. So, whether you are working on metal, plastic, or composites, the 3 Axis CNC machine can adapt to your requirements, making it an essential tool in modern manufacturing.

User-Friendly Features

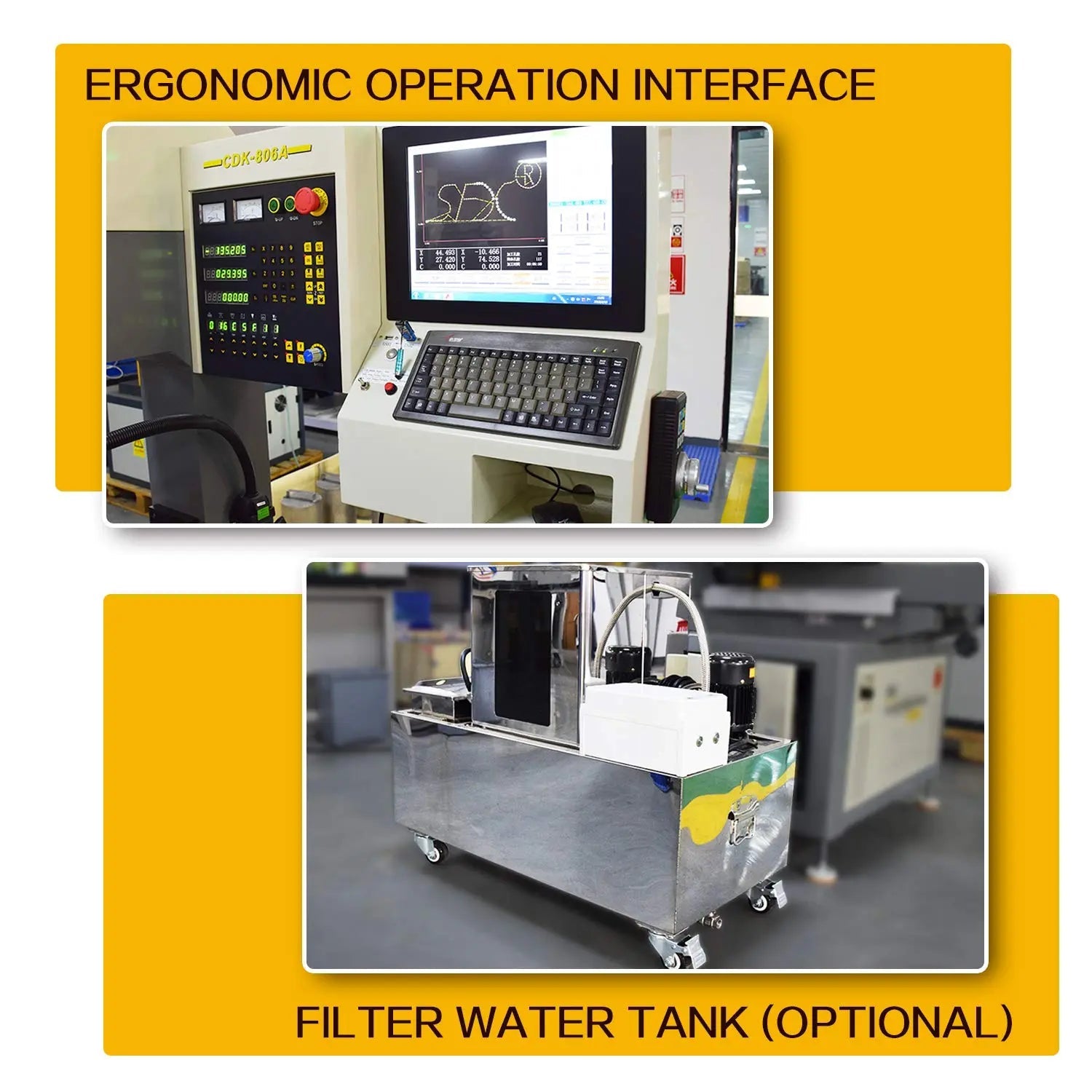

Equipped with a user-friendly interface, the CDK-806A makes it easy for operators of all skill levels to achieve desired results. Because of its intuitive controls and feedback system, users can monitor the drilling process in real-time, ensuring accuracy and reducing the chances of errors. This efficiency is crucial when working on high-stakes projects where every detail counts.
